Test Center Facilities

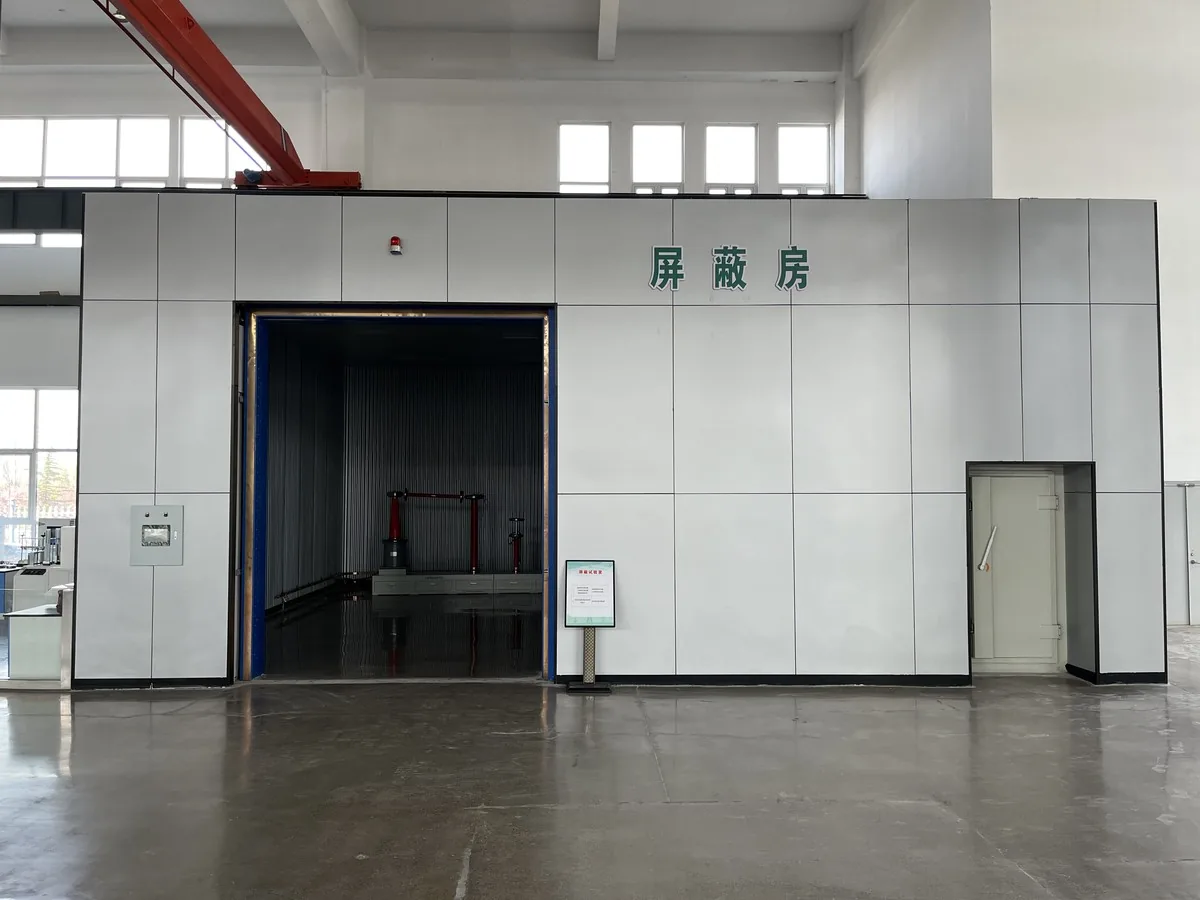

EMC Shielded Room
Modular assembled shielding enclosure installed on a recessed floor slab with a level threshold for easy trolley access. Attenuates external electromagnetic interference so partial discharge measurements in the pico-coulomb range are not swamped by ambient noise. Requires a foundation pit, pre-embedded conduits and grounding electrodes before installation.
Overview
Modular assembled shielding enclosure installed on a recessed floor slab with a level threshold for easy trolley access. Attenuates external electromagnetic interference so partial discharge measurements in the pico-coulomb range are not swamped by ambient noise. Requires a foundation pit, pre-embedded conduits and grounding electrodes before installation.
Applicable Standards
- IEC 61000-5-7
- GB/T 12190
Application Scenarios
Request Specifications & Quotation
Tell us your test object ratings, the test items you need and the applicable standards. Our sales engineers reply with a configuration proposal and a formal quotation within 24 hours.
Get a QuoteFrequently Asked Questions
Why does a partial discharge test hall need a shielded room?
How is the shielded room installed?
Which standard covers shielding enclosure performance?
Related Products

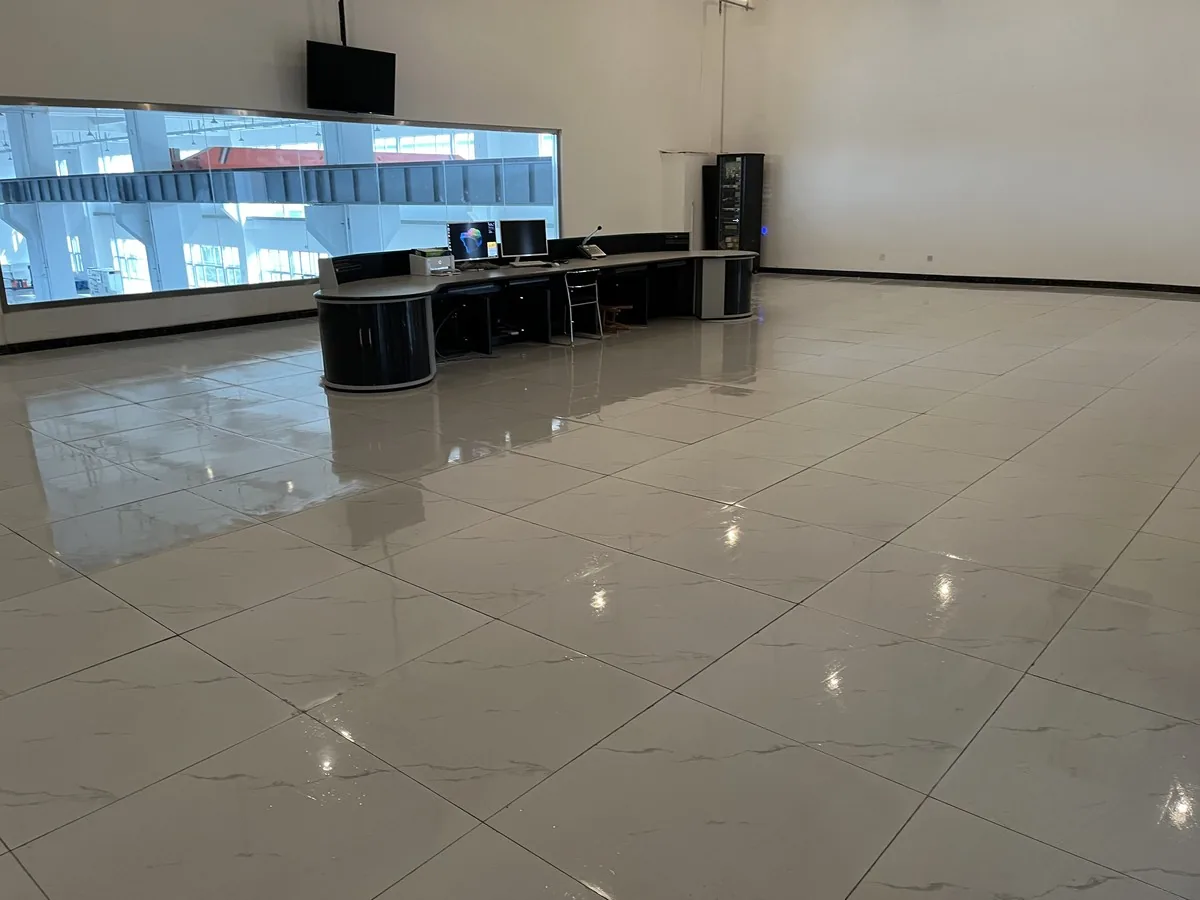

Central Control Room
Operator control room for a high-voltage test center, integrating the console, control systems, monitoring displays and safety interlocks so the whole test hall is managed from one place and operators are physically separated from the high-voltage area.

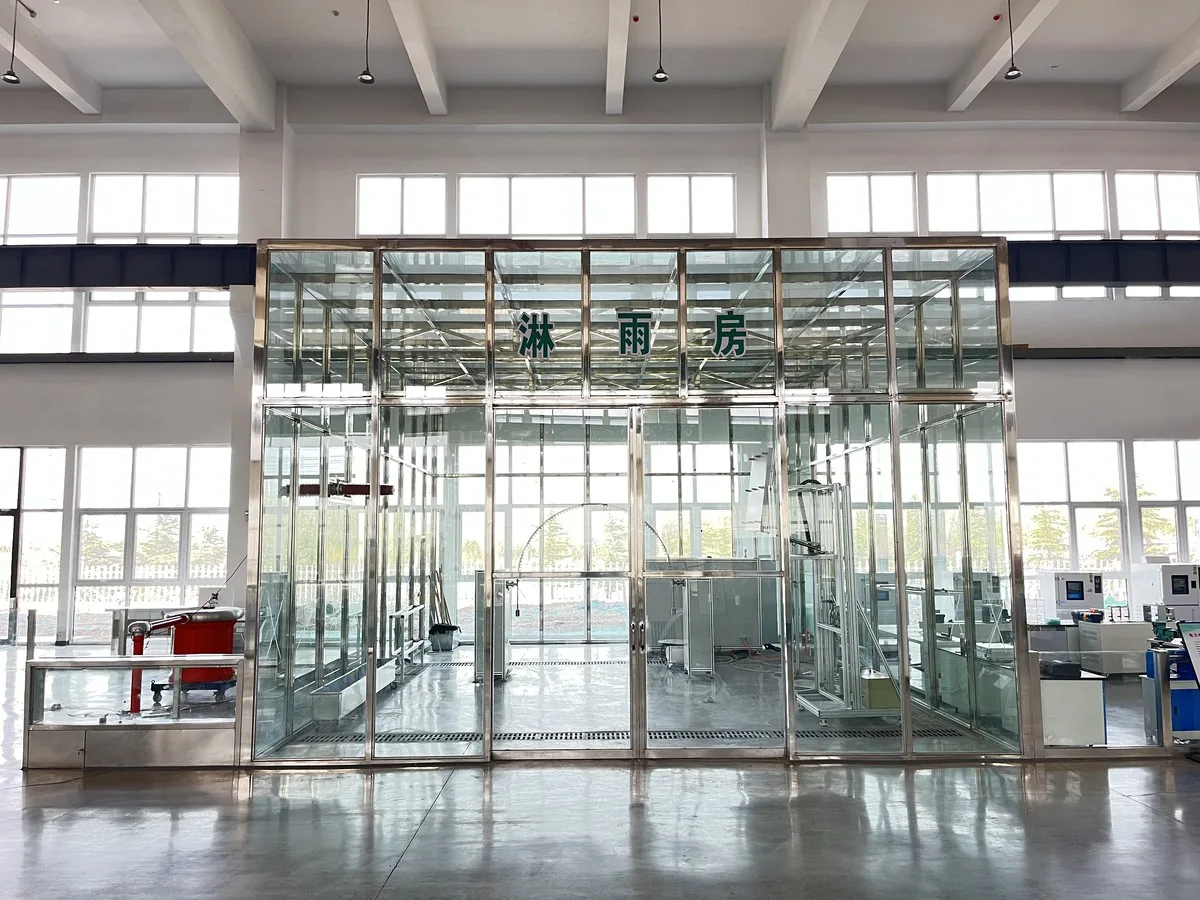

Artificial Rain Test Room
Rain test area with at least 4.5 m clear internal height, waterproof treatment on roof and walls, a seepage drainage floor with ring drainage channel, waterproof lighting, plus water supply and 6 m³/h drainage capacity. Used for wet withstand and rain tests on outdoor equipment and insulators.

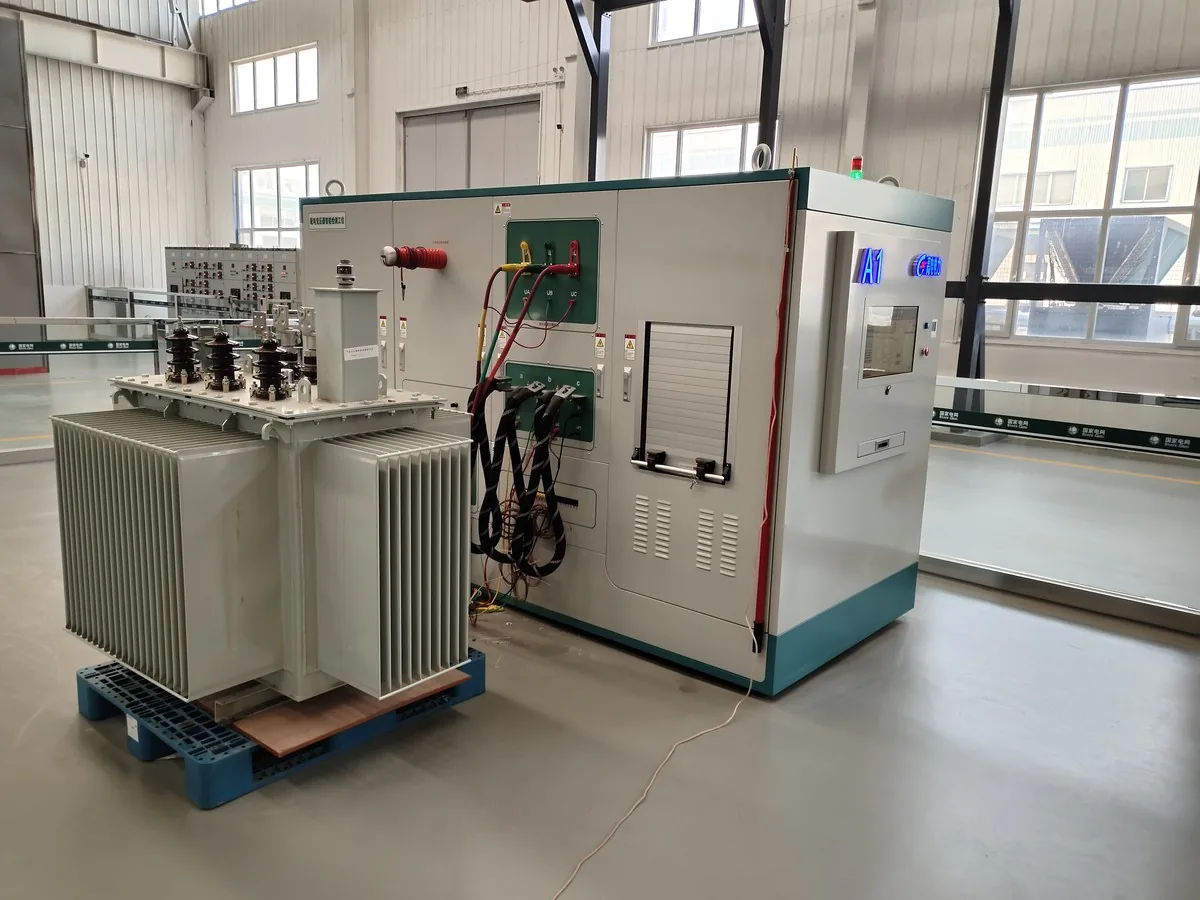

GDBZ-IV Automatic Transformer Comprehensive Test System
