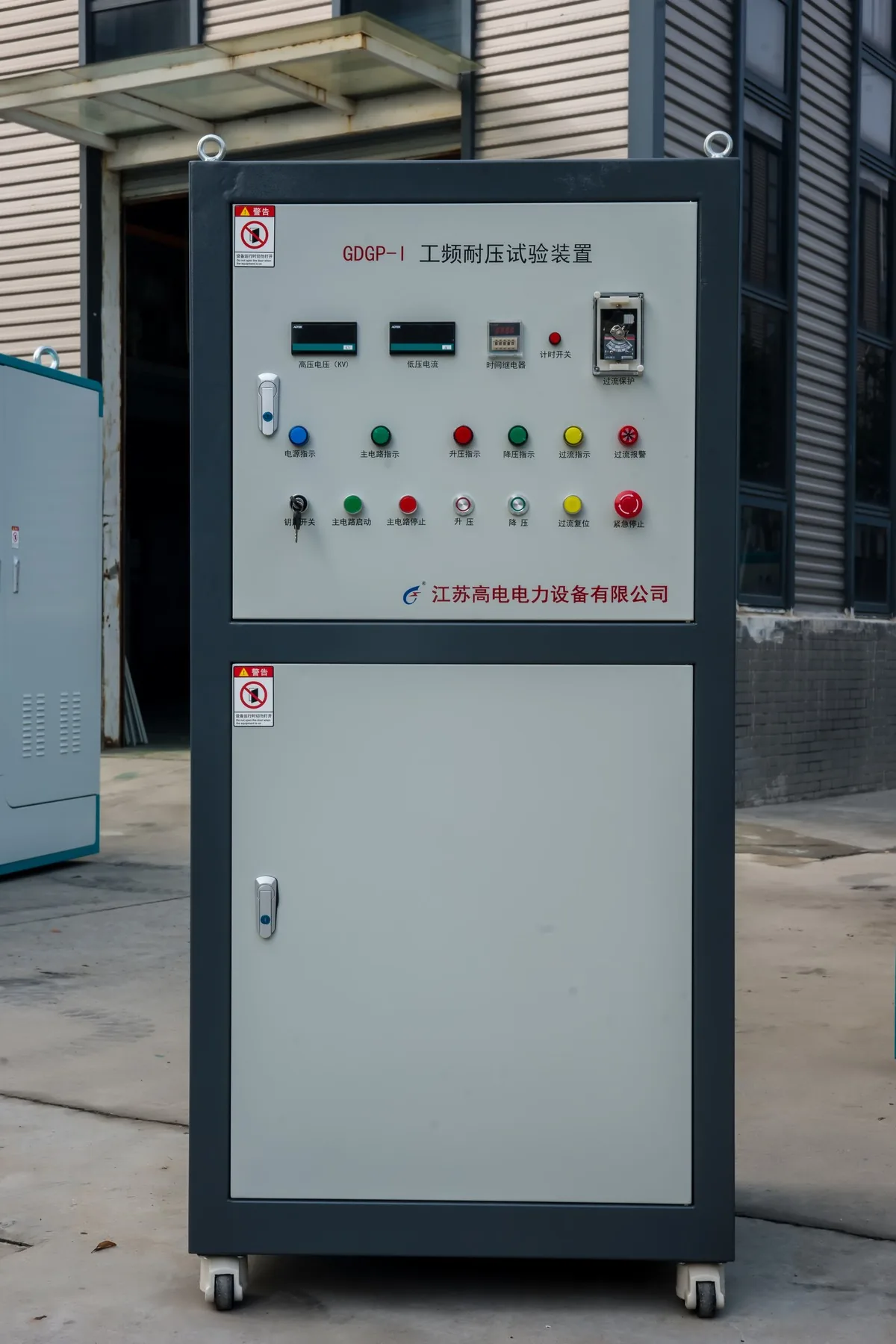

GDGP-I AC Withstand Voltage Test Set

Power-frequency withstand voltage (hipot) test set for transformers, switchgear, cables and insulators. Applies a specified AC voltage for a defined duration to verify insulation strength.

GDGP-I AC Withstand Voltage Test Set
Standards
IEC 60060 · GB/T 16927
Applications
Routine test · Acceptance test · Preventive maintenance

Overview

Power-frequency withstand voltage (hipot) test set for transformers, switchgear, cables and insulators. Applies a specified AC voltage for a defined duration to verify insulation strength.

Applicable Standards

  • IEC 60060
  • GB/T 16927

Application Scenarios

Routine testAcceptance testPreventive maintenance

Request Specifications & Quotation

Tell us your test object ratings, the test items you need and the applicable standards. Our sales engineers reply with a configuration proposal and a formal quotation within 24 hours.

Get a Quote

Frequently Asked Questions

What is an AC withstand voltage test?
Also called a hipot or dielectric withstand test, it applies a specified power-frequency AC voltage across the insulation for a defined duration and checks that no breakdown or excessive leakage occurs. It is a routine, acceptance and preventive maintenance test.
Which equipment can this test set cover?
The set is used for power-frequency withstand testing of transformers, switchgear, cables and insulators. Required output voltage and current capacity depend on the capacitance and insulation level of the test object.
Which standard defines the test procedure?
High-voltage test techniques are defined in IEC 60060 and GB/T 16927. The test voltage level and duration are taken from the relevant product standard for the equipment under test.

Related Products

YDTW Partial-Discharge-Free AC Test Transformer
High Voltage Test Equipment

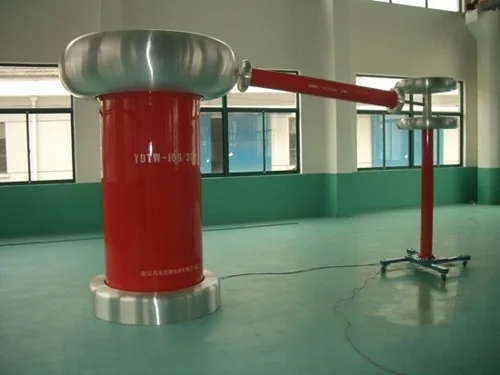

YDTW Partial-Discharge-Free AC Test Transformer

Low partial-discharge AC test transformer used to verify the power-frequency insulation level of insulating materials, insulation structures and electrical products, and to serve as a PD-free test source for transformers, capacitors, HV switches, instrument transformers and surge arresters. Its own partial discharge level is kept low enough not to mask the discharge signal of the test object.

Lightning Impulse Test System
High Voltage Test Equipment

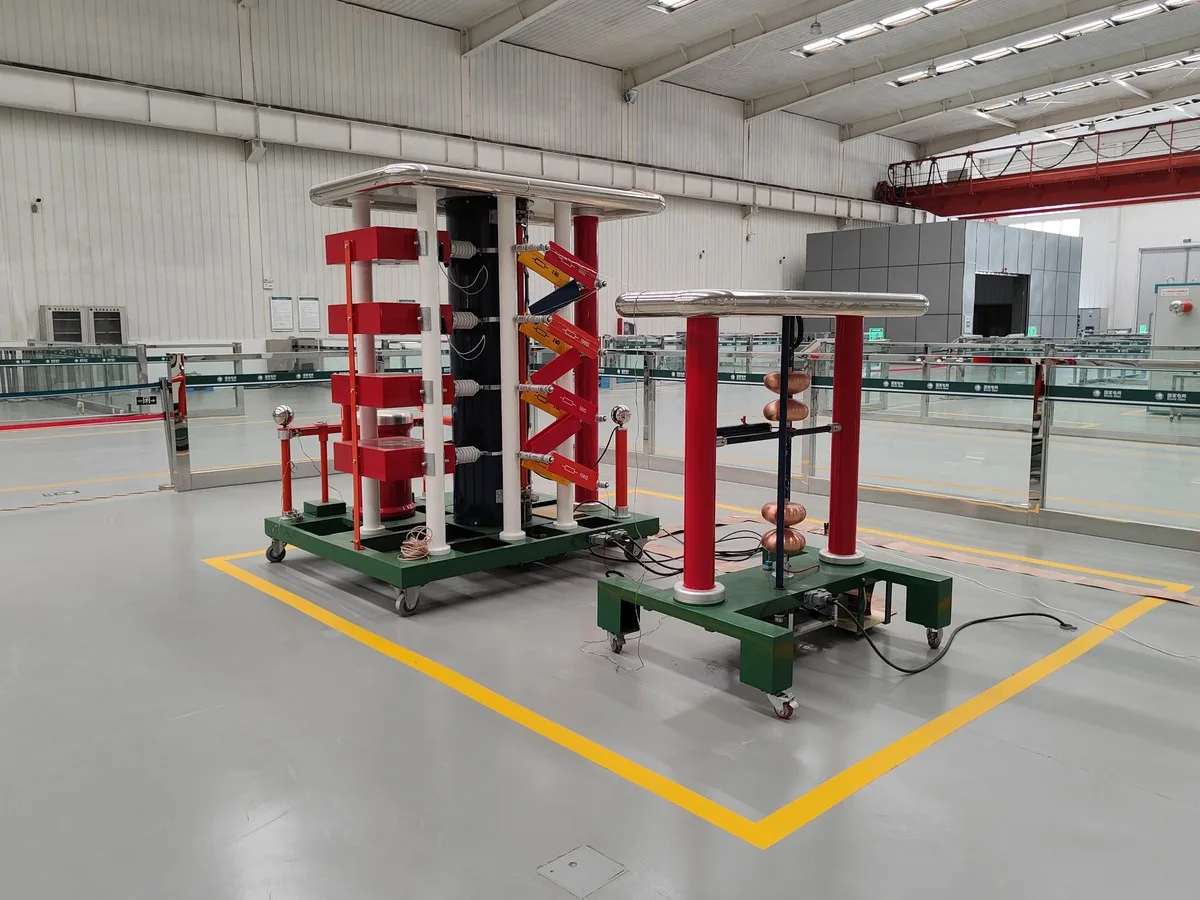

Lightning Impulse Test System

Impulse voltage generator producing standard lightning and switching impulse waveforms for insulation coordination and type tests on transformers and other high-voltage equipment.

Series Resonant Test System
High Voltage Test Equipment

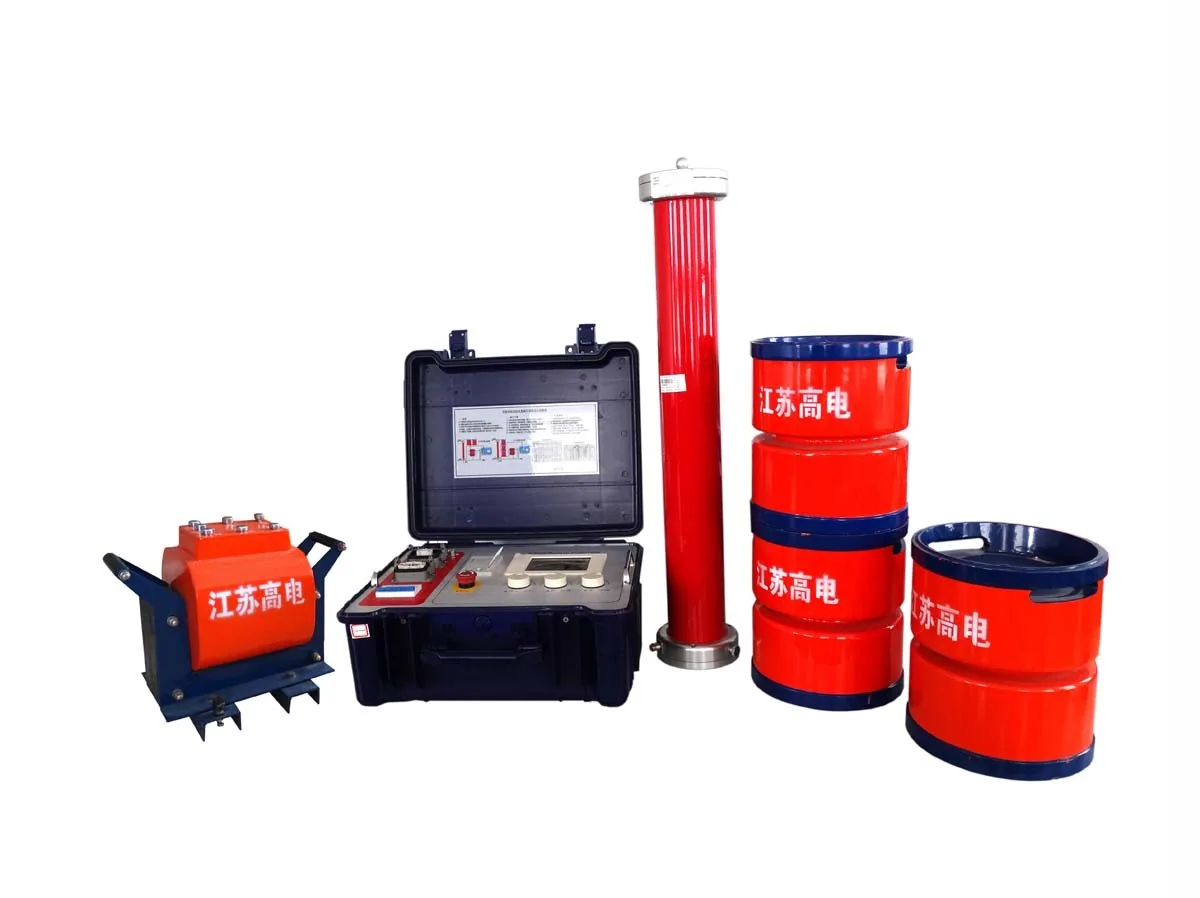

Series Resonant Test System

Variable frequency series resonant test set with compact size, real-time status display, adjustable test voltage, frequency range and dwell time, automatic capacitance calculation and 0.1 Hz frequency resolution. Resonant tuning lets a modest supply drive the large capacitive load of long cables and generators.

Need the datasheet for this model?

Send us this product name plus your test requirements. We reply with specifications, photos and a formal quotation.

Contact Sales Email Us
