GDBZ-IV Automatic Transformer Comprehensive Test System

Integrated transformer testing platform covering no-load loss, load loss, winding resistance, ratio and vector group, and AC withstand voltage tests in a single automatic sequence. Reduces manual re-wiring between test items and consolidates results into one test report.

GDBZ-IV Automatic Transformer Comprehensive Test System
Standards
IEC 60076 · IEEE C57 · GB 1094
Applications
Transformer factory FAT · Power utility maintenance · Repair workshop

Overview

Integrated transformer testing platform covering no-load loss, load loss, winding resistance, ratio and vector group, and AC withstand voltage tests in a single automatic sequence. Reduces manual re-wiring between test items and consolidates results into one test report.

Applicable Standards

  • IEC 60076
  • IEEE C57
  • GB 1094

Application Scenarios

Transformer factory FATPower utility maintenanceRepair workshop

Request Specifications & Quotation

Tell us your test object ratings, the test items you need and the applicable standards. Our sales engineers reply with a configuration proposal and a formal quotation within 24 hours.

Get a Quote

Frequently Asked Questions

Which transformer tests does the comprehensive test system cover?
The system performs no-load loss, load loss, DC winding resistance, turns ratio and vector group verification, and AC withstand voltage tests in one integrated platform, so a complete routine test sequence is completed without re-wiring the test object between items.
Which standards does the transformer test system comply with?
The test methods and evaluation logic follow IEC 60076, IEEE C57 and GB 1094. The exact standard clauses applicable to your transformer rating and contract specification are confirmed during the technical proposal stage.
How do I get a quotation for a transformer test system?
Send us your transformer ratings (capacity, voltage class, vector group), the test items you need to cover, and applicable standards. Our sales engineers reply with a configuration proposal, layout drawing and formal quotation within 24 hours.

Related Products

GD700A Transformer Turns Ratio Tester
Transformer Testing

GD700A Transformer Turns Ratio Tester

Portable transformer turns ratio (TTR) tester for ratio, vector group and excitation current measurement. Designed for field commissioning and preventive maintenance where a full test bench is not available.

GD200-40WA Dual-Channel DC Winding Resistance Tester
Transformer Testing

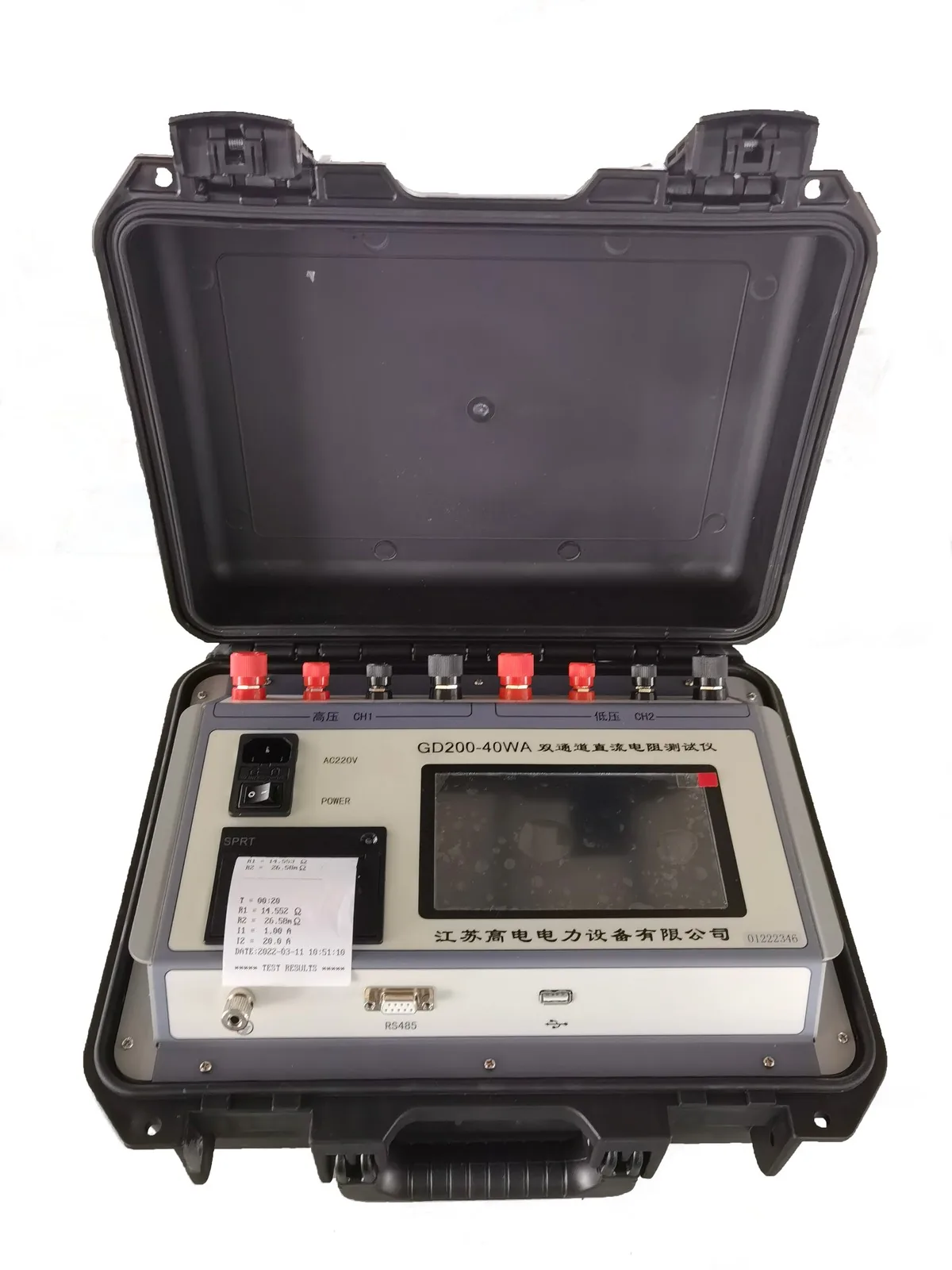

GD200-40WA Dual-Channel DC Winding Resistance Tester
